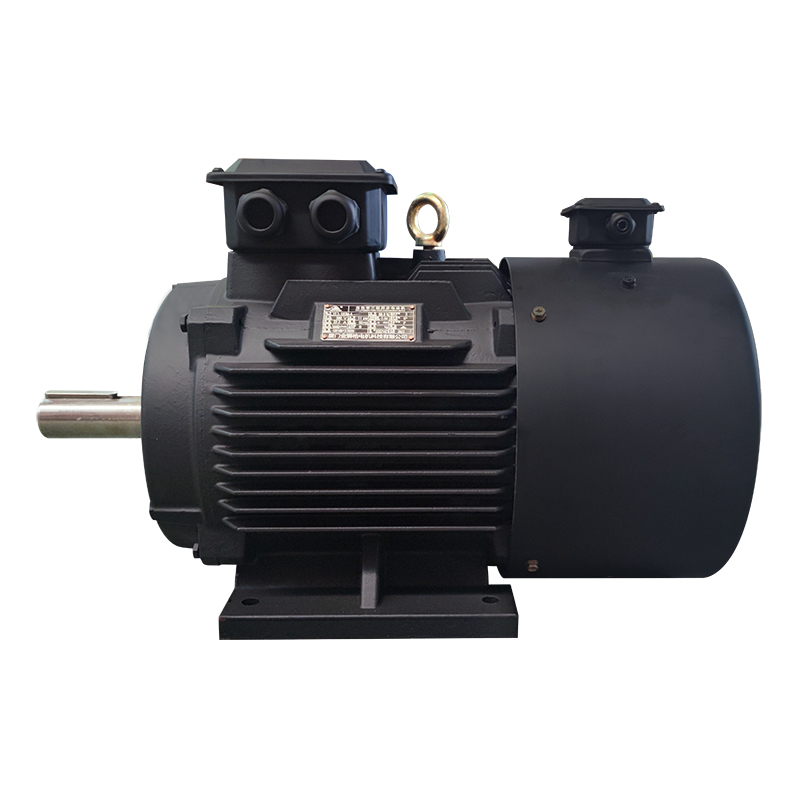

YVF3 Variable Frequency Speed Control Three-Phase Asynchronous Motor

Availability:

Quantity:



Inquire Add to Basket

Product Description

CHARACTERISTICS

The YVF3 series frequency-controlled speed-regulating three-phase asynchronous motors are specially designed for use with electronic inverters. Together, they enable stepless speed control within a range of 150–2750 RPM (4-pole), making them the ideal power solution for machinery requiring wide-range stepless speed regulation. These motors are widely used in transportation, metallurgy, textile, dyeing, chemical industry, mining, fans, pumps, and other fields. Its electrical performance and mounting dimensions are manufactured according to the requirements of the national standard GB18613, and are compatible with international IEC standards.

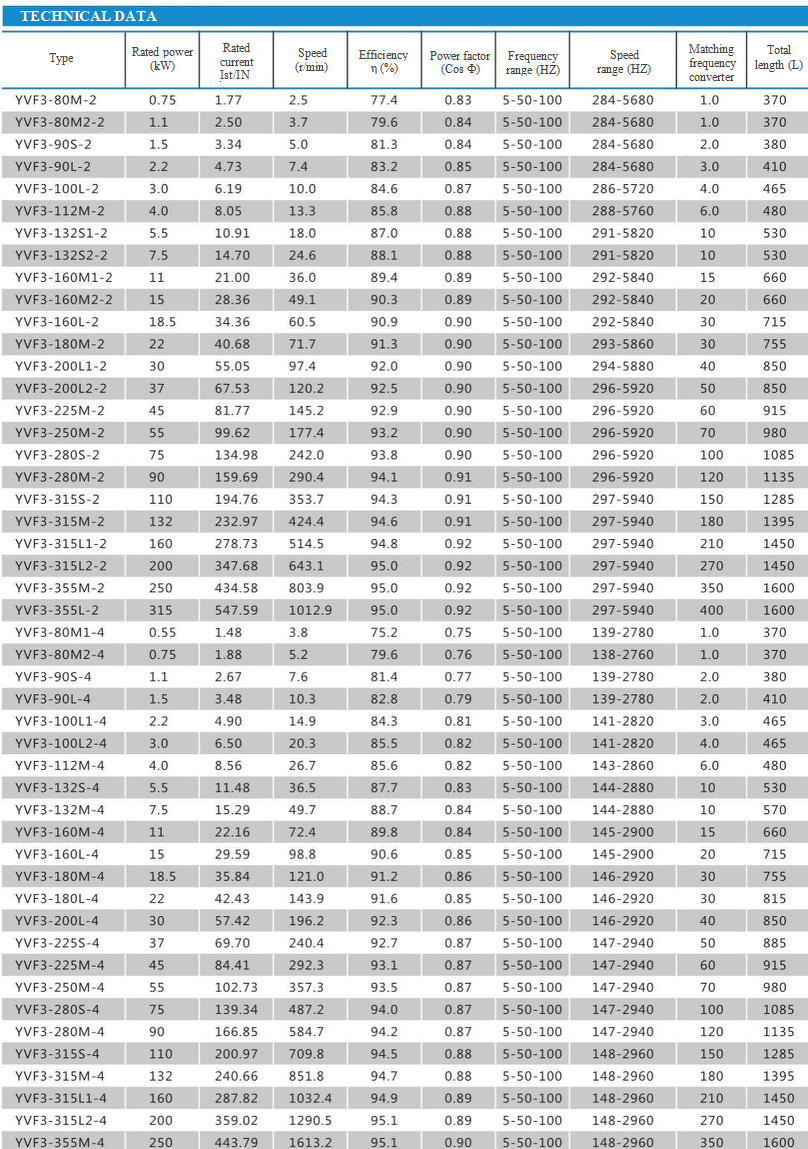

PRODUCT RELATED PARAMETERS

Center height of machine base: 80-355MM

Power range: 0.55-315kW

Rated voltage: 380V (other voltages need to be agreed separately)

Rated frequency: 50HZ (or 60Hz)

Protection level: IP54 (or IP55)

Working system: S1

Installation type: the same as YE3
