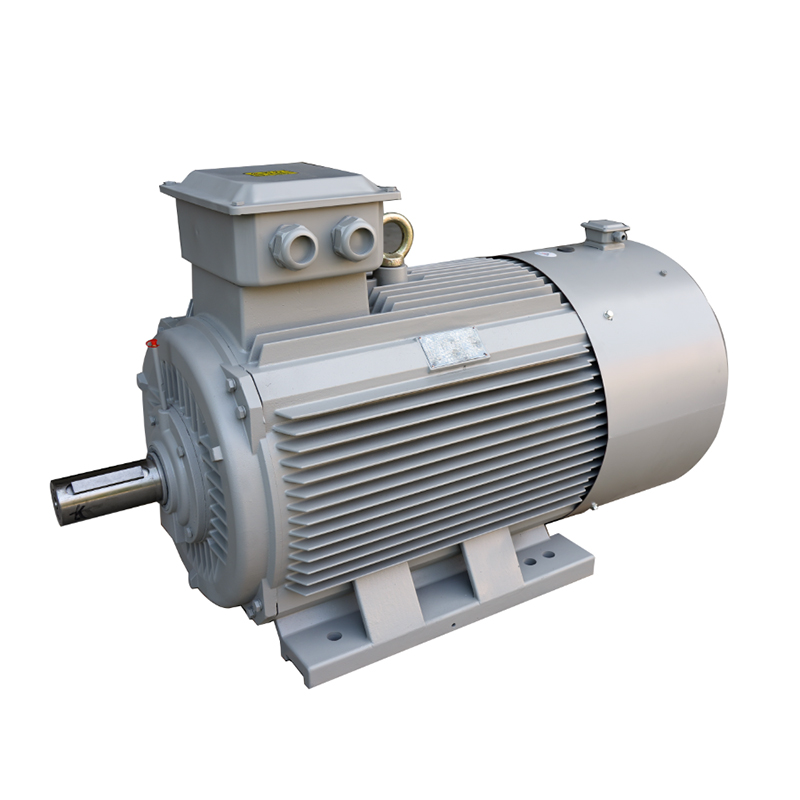

Permanent Magnet Motor (lE5)

TECHNICAL SPECIFICATIONS

Power range: 3 kW ~ 355 kW

Machine base: 90-315

Insulation class: F

Cooling mode: IC411

Protection level: IP54 and above

Working system: S1

Operating conditions:-15 ℃~40 ℃; altitude not more than 1000 meters, relative temperature not more than 90%

Speed: 750 ~ 3000 rpm

Voltage: 380V

Energy efficiency: GB 30253 – Grade 1 energy efficiency; for motors above 90 kW,

the efficiency meets or exceeds IE4 level as specified in IEC60034-30-1:2014.

Thermal protection: PTC thermal protection, standard

Operating ambient temperature: 0 ~ 40 ℃ (not freezing)

Environmental humidity: 20% ~ 80% RH (no condensation)

Storage temperature:-20 ℃ ~ 60 ℃ (maximum temperature guarantee: 80 ℃ for 72 hours)

Storage humidity: 20% ~ 90% RH (no condensation)

Altitude derating coefficient:

When used at an altitude of more than 1000m, the thin air reduces the heat dissipation effect, so the temperature may rise.

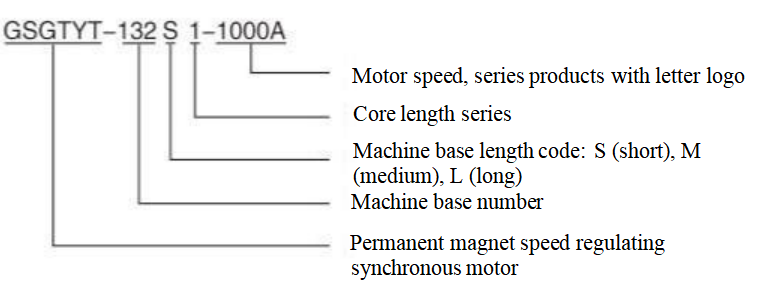

CODE DESCRIPTION
